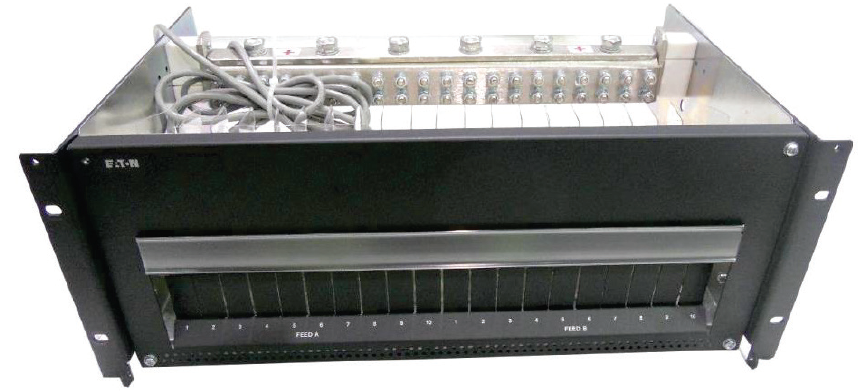

• Image 1 - Eaton DCM2000

Eaton DCM2000

TECHNOLOGY: DC Distribution Module
VOLTAGE RANGE: 43-60Vdc
CONFIGURATION: 19″ Rackmount – 4RU
WARRANTY: 2 Year Full Warranty



Product Features

The Eaton DCM2000-21RX is a High Capacity (Low Ohmic_ DC Distribution Module (HCLOD) which provides circuit protection for a wide selection of telecommunication loads up to 250A per circuit and 1,200A per distribution (600A + 600A) at 60V.  The input bus can be split A+B and is supplied with a linking bus for single plane use.

All circuit breakers are alarmed through auxiliary contacts and switchable to providing volts free alarm signals.

The DCM2000-21RX is designed to comply with recognized international standards and for complete operator safety.  Full front access is provided to allow easy termination of load cables in vertical cable entry.

The circuit breakers are easily replaced or augmented by having plug in terminals fitted.

The Eaton DCM2000’s Features Include:

  • 4RU, 19″ rack mount module
  • Up to 20 bullet terminal (plug-in) breakers
  • Selection of MCB ratings to 15-250A (DC 60V)
  • Split A+B input option
  • Tool access front cover
  • Frint access for cable termination
  • Circuit breaker trip alarms
  • Compliance with international standards

For pricing or further information, please phone Power On Australia on 1300 66 24 35 – OR – complete the enquiry form on this page.
